Sort & Handle
Sort & Handle

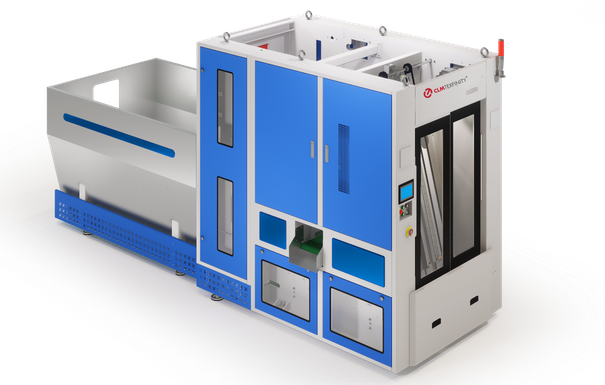

The S.grab s picks and separates linen before it enters the finishing section. A large servo manipulator does the first separation. A small one does the second. Separated linen goes into linen carts, ready for the feeder.
Place it anywhere in your laundry. Feed it from overhead bags or conveyor lines. Set a picking recipe per linen type.
Capacity
Up to 900 pcs/h
Linen: sheets, duvet covers, tablecloths
Air supply
Pressure: 0.6 MPa
Consumption: 50 L/min
Connection: Ø12 mm
Power supply
Voltage: 3 phase 380 V
Max. power: 6.8 kW
Dimensions L × W × H
4905 × 1558 × 2396 mm
Weight
3100 kg
Thorough separation
Two-stage servo manipulators
Up to 900 pieces/hour
Intelligent picking
Linen detection
Recipe per linen type
Clamps adjust to thickness
Fits your laundry
Place it anywhere
Feed from bags or conveyors
Delivers to linen carts
Easy to work with
No manual sorting
User-friendly touchscreen
Remote diagnosis
